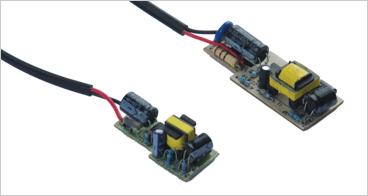

LED Drivers – Bulb Applications from 1 to 6W



Input Voltage : 100 – 300V AC
Input Frequency : 147Hz -63Hz
Output Voltage : 3.5V to 18.0VDC
Output Current : 350mA (or) 700mA (Constant Current)
Input Power : 7.5Watt Max.
Power Factor    : >0.7



Description

LED Drivers are designed to provide all the power requirements for Bulb, Down lights, Street light, Phototherapy systems & various Applications, LED Drivers are designed to operate in critical power conditions. Designed with topology of high switching frequency, Power Factor Corrected, Low Harmonics Distortion, High Efficiency, Which makes them highly reliable for rugged field conditions.


General Specifications:

  • AC input range: 100VAC-300VAC
  • Out Put Line and Load regulation: ±5%
  • Over Current Protection : Constant Current
  • Over Temperature Protection: Output Shut Down & Auto Recovery
  • Short Circuit Protection: Available
  • High Reliability
  • Compact size and less weight
  • SMPS based
  • Power Factor :>0.7
  • Efficiency : >65%
  • Operating Temperature : 60degress


Mechanical:

  • Size : L= mm, W=mm, H=mm
  • Input Cable: 2 Wire for L, N.
  • Out Put : 2 Wire Red Wire for +Ve, Black wire for –Ve
