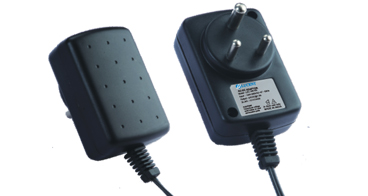

Switching Power Supplies - 12.0V -1.5A AC - DC Adapter




Input Voltage : 100VAC-300VAC
Input Current : 300Ma rms Maximum
Input Frequency : 47Hz -63Hz
Out Put Voltage : 12VDC
Out Put Current :

1.5A



Description

These power supplies are designed to provide all the power requirements of Set top Boxes. Designed to operate for wider AC Input range 100 - 300VAC and to withstand the universal power conditions. With high reliability, compact size and less weight


General Specifications:
  • AC input range: 100VAC-300VAC
  • Out Put Line and Load regulation: ±5%
  • Ripple: <0.5% to 1% of Output Voltage
  • Noise: <1% to 2% of Output Voltage
  • Over Current Protection: 120% ~ 150% of rated Load
  • Over Temperature Protection: Output Shut Down & Auto Recovery
  • Short Circuit Protection: Available
  • Over Voltage Protection: Available
  • Over Load Protection: Available
  • High reliability
  • Compact size and less weight
  • SMPS based


Environment Specifications:
  • Operating Temperature: 0°-40°C/50°C
  • Operating Relative Humidity: 5-95% RH
  • Storage Temperature: -20 to 70°


Mechanical:

  • Out Side Dimensions: D= 105.00mm,W=60.00mm,H=32.00mm
  • Input : 2Pin Plug in type
  • Out Put Cable: 2 Core Flat Cable with 2.1mm I.D and 5.5mm O.D
