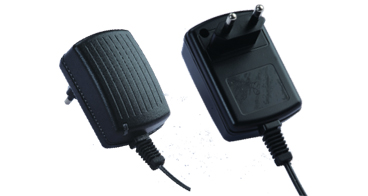

Switching Power Supplies - 12W     AC - DC Adapter




Input Voltage :

100VAC-300VAC
Input Current :

300Ma rms Maximum
Input Frequency :

47Hz -63Hz
Out Put Voltage : 5V, 7.5V,9V & 12VDC
Out Put Current :

12W Maximum



Description

These power supplies are designed to provide all the power requirements of Telecom Like will phone, Modem. C.C Cameras and Small Battery Charger,   Designed to operate for wider AC Input range 100 - 300VAC and to withstand the universal power conditions. With high reliability, compact size and less weight.


General Specifications:
  • AC input range: 100VAC-300VAC
  • Out Put Line and Load regulation: ±5%
  • Ripple: <0.5% to 1% of Output Voltage
  • Noise: <1% to 2% of Output Voltage
  • Over Current Protection: 120% ~ 150% of rated Load
  • Over Temperature Protection: Output Shut Down & Auto Recovery
  • Short Circuit Protection: Available
  • Over Voltage Protection: Available
  • Over Load Protection: Available
  • High reliability
  • Compact size and less weight
  • SMPS based


Environment Specifications:
  • Operating Temperature: 0°-40°C/50°C
  • Operating Relative Humidity: 5-95% RH
  • Storage Temperature: -20 to 70°


Mechanical:

  • Out Side Dimensions: D= 105.00mm,W=60.00mm,H=32.00mm
  • Input : 2 Pin or 3Pin Plug in type
  • Out Put Cable: 2 Core Flat Cable with 2.1mm I.D and 5.5mm O.D
