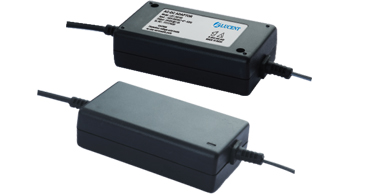

Switching Power Supplies - 24.0V - 2.5A AC - DC Adapter




Input Voltage :

100VAC-300VAC
Input Current :

800Ma rms Maximum
Input Frequency :

47Hz -63Hz
Out Put Voltage :

24VDC
Out Put Current :

2.5Amps
Out Put Load Regulation : 22.80V - 25.2VDC



Description

These power supplies are designed to provide all the power requirements of Domestic / Commercial RO/ UV Water Purifiers. Designed to operate for wider AC Input range 100 - 300VAC and to withstand the universal power conditions. With high reliability, compact size and less weight.


General Specifications:
  • AC input range: 100VAC-300VAC
  • Out Put Line and Load regulation: ±5%
  • Ripple: <0.5% to 1% of Output Voltage
  • Noise: <1% to 2% of Output Voltage
  • Over Current Protection: 120% ~ 150% of rated Load
  • Over Temperature Protection: Output Shut Down & Auto Recovery
  • Short Circuit Protection: Available
  • Over Voltage Protection: Available
  • Over Load Protection: Available
  • High reliability
  • Compact size and less weight
  • SMPS based


Environment Specifications:
  • Operating Temperature: 0°-40°C/50°C
  • Operating Relative Humidity: 5-95% RH
  • Storage Temperature: -20 to 70°


Mechanical:

  • Out Side Dimensions: D= 105.00mm,W=60.00mm,H=32.00mm

  • Input Cable: 2Pin or 3Pin With 2 Core as per Customer requirement

  • Out Put Cable: 2 Core Flat Cable with 35 Cm
