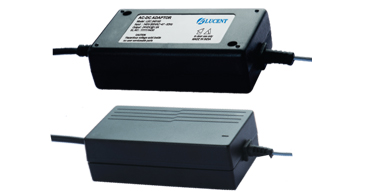

Switching Power Supplies - 36.0V -1.5A AC - DC Adapter




Input Voltage :

140VAC - 300VAC
Input Current :

800Ma rms Maximum
Input Frequency :

47Hz - 63Hz
Out Put Voltage :

36VDC
Out Put Current :

1.5Amps
O P Load Regulation :

34.20V - 37.8VDC




Description

These power supplies are designed to provide all the power requirements of Domestic / Commercial RO/ UV Water Purifiers. Designed to operate for wider AC Input range 140 - 300VAC and to withstand the universal power conditions. With high reliability, compact size and less weight.


General Specifications:
  • AC input range: 140VAC-300VAC
  • Out Put Line and Load Regulation: ±5%
  • Ripple: <0.5% to 1% of Output Voltage
  • Noise: <1% to 2% of Output Voltage
  • Over Current Protection: 120% ~ 150% of rated Load
  • Over Temperature Protection: Output Shut Down & Auto Recovery
  • Short Circuit Protection: Available
  • Over Voltage Protection: Available
  • Over Load Protection: Available
  • High Reliability
  • Compact size and less weight
  • SMPS based


Environment Specifications:
  • Operating Temperature: 0°-40°C/50°C
  • Operating Relative Humidity: 5-95% RH
  • Storage Temperature: -20 to 70°


Mechanical:

  • Out Side Dimensions: D= 105.00mm, W=60.00mm, H=32.00mm

  • Input Cable: 2Pin or 3Pin With 2 Core as per Customer requirement

  • Out Put Cable: 2 Core Flat Cable with 35 Cm
