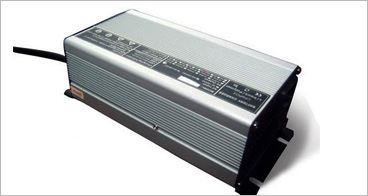

Battery Chargers For General Applications



Input Voltage : 90VAC-300VAC
Input Current : 3000mA Maximum
Input Frequency : 47Hz -63Hz
Power Factor : >0.9
Input THD : < 20%
Output Voltage : 13.5V
Output  Current :

20A



Description

These  Power Supplies are the mains operated power supplies used for charging SMF Batteries.

Designed to operate universal AC Input range 90 - 300VAC.


General Specifications:
  • SMPS Based design
  • Fully modern design to meet CE certification
  • Designed to meet IEC Standards
  • Designed to meet EN Standards.
  • Protections against battery low and battery full
  • High power factor and Low THD as per IEC 61000-3-2
  • Over Temperature Protection
  • Output Short Circuit Protection
  • High reliability
  • Stainless steel enclosure in sleek model


Environment Specifications:
  • Operating Temperature: 0°- 50°C
  • Operating Relative Humidity: 5-95% RH
  • Storage Temperature: -20 to 70°C


Mechanical:

  • Out Side Dimensions: L = 210mm, W = 100mm, H = 70 mm
  • Input Cable: 3Pin round cable of 1.8mtr length
  • Out Put : 20A Connectors

Note: Any customized products shall be developed.
