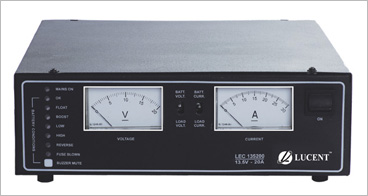

Battery Chargers For Radio Applications



Input Voltage : 170VAC-270VAC
Input Current : 2000mA Maximum
Input Frequency : 47Hz -63Hz
Out Put Voltage Regulation : 13.10V to 13.90VDC
Output Voltages : 13.5V
Battery Current : 12A
Radio Current :

20A



Description

These  Power Supplies are the mains operated power supplies used for powering wireless sets of both UHF & VHF.It is used to charge the batteries and as well as supply the power to Radio set. Designed to operate  AC Input range 170 - 270VAC.


General Specifications:
  • SMPS Based design
  • Protections against battery low and battery full.
  • Battery charging, Battery low, Mains on & Radio on Indications.
  • Analog volt meter and ammeter for output voltage and current display.
  • Over Temperature Protection
  • Output Short Circuit Protection
  • High reliability


Environment Specifications:
  • Operating Temperature: 0°- 50°C
  • Operating Relative Humidity: 5-95% RH
  • Storage Temperature: -20 to 70°C


Mechanical:

  • Out Side Dimensions: L = 270 mm, W = 265mm, H = 75mm
  • Input Cable: 3Pin round cable of 1.8mtr length.
  • Out Put : Provision for wiring both battery and radio.

Note: Any customized products shall be developed.
