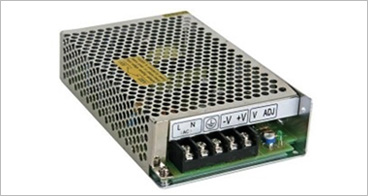

Switching Power Supplies – 72W to 120W

Description

These power supplies are designed to provide all the power requirements of  LED Strip Lights (72W to 120W)

General Specifications:

• SMPS Based design
• Universal operating range 100VAC - 300VAC
• Input Over Voltage Cutoff
• Out Put Line and Load regulation ±5%
• Ripple: <0.5% to 1% of Output Voltage
• Noise: <1% to 2% of Output Voltage
• Output Over Load Protection
• Output Over Voltage Protection
• Over Temperature Protection
• Output Short Circuit Protection
• High reliability
• Compact in size and less weight

Environment Specifications:

• Operating Temperature: 0 - 50°C
• Operating Relative Humidity: 5-95% RH
• Storage Temperature: -20 to 70°

Mechanical:

• • Out Side Dimensions: L = 124mm,  W = 62mm,  H = 36 mm
• Input : 2Pin / 3Pin Round Cable of length 1.8mtr / As per customer requirement.
• Out Put Cable: 2 Core Flat Cable with 2.1mm/5.5mm Connector is standard / As per customer request.
